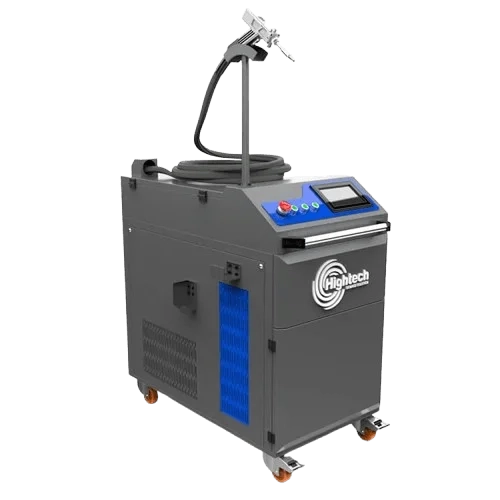

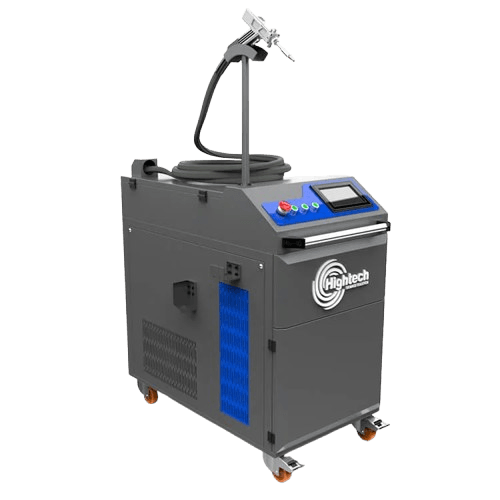

4-in-1 Fiber Laser Welding Machines
Hightech 4-in-1 fiber laser welding machines combine welding, weld cleaning, surface cleaning, and light-duty cutting in one handheld system. The HT FW series is available in 1500W, 2000W, and 3000W configurations with wire feeding and water cooling for stainless steel, carbon steel, aluminum, and general metal fabrication.
In 100+ Countries
Online or Local Where Available
Worldwide Shipping Available
Quick Response 24/7
Our 4-in-1 Fiber Laser Welding Machine Models
Compare Hightech HT FW 1500W, 2000W, and 3000W fiber laser welding machines by laser power, welding thickness, wire feeding, cooling system, and production capacity to choose the right configuration for your metal fabrication needs.
How to Choose the Right 4-in-1 Fiber Laser Welding Machine
Choose the right HT FW configuration based on the metal type, required laser power, welding task, wire-feeding needs, and workshop power supply. Hightech offers 1500W, 2000W, and 3000W models for handheld welding, cleaning, seam cleaning, and light-duty cutting applications.
By Material
Select the machine based on the metals you process, including stainless steel, carbon steel, and aluminum.
By Laser Power
The 1500W and 2000W configurations support stainless and carbon steel from 0.5–4 mm and aluminum from 0.5–3 mm. Choose 3000W when stainless or carbon steel capacity up to 6 mm is required.
By Welding Task
Match the machine to your welding, cleaning, seam-cleaning, and light-duty cutting requirements.
By Wire Feeding Requirements
Use the wire-feeding system when filler wire is required for the selected joint or welding process.
By Power Supply
Check your workshop power supply before selection. The 1500W and 2000W models use 220V, while the 3000W model uses 380V.
Compare 4-in-1 Fiber Laser Welding Machine Configurations
Compare Hightech HT FW 1500W, 2000W, and 3000W models by laser power, welding thickness, wire feeding, cooling system, and production requirements to choose the right setup for your metal fabrication needs.
| Compare | HT FW 1500 | HT FW 2000 | HT FW 3000 |
|---|---|---|---|
| Best For | Workshops and general metal fabrication | Medium-duty fabrication and higher production demand | Heavy-duty and thicker-metal production |
| Laser Output | 1500 W 1064 nm ±10 nm | 2000 W 1064 nm ±10 nm | 3000 W 1064 nm ±10 nm |
| Published Welding Capacity |
Stainless Steel: 0.5–4 mm
Carbon steel: 0.5–4 mm Aluminum: 0.5–3 mm |
Stainless steel: 0.5–4 mm
Carbon steel: 0.5–4 mm Aluminum: 0.5–3 mm |
Stainless steel: 0.5–6 mm
Carbon steel: 0.5–6 mm Aluminum: 0.5–3 mm |
| 4-in-1 Functions |
Welding Cutting Seam Cleaning Cleaning |
Welding Cutting Seam Cleaning Cleaning |
Welding Cutting Seam Cleaning Cleaning |
| Wire Feed & Cooling |
AMF-A Wire Feeder S&A Water Cooling System |
AMF-A Wire Feeder S&A Water Cooling System |
AMF-A Wire Feeder S&A Water Cooling System |
| Welding Setup | Handheld welding gun Adjustable laser power, frequency, scan speed and scan width | Handheld welding gun Adjustable laser power, frequency, scan speed and scan width | Handheld welding gun Adjustable laser power, frequency, scan speed and scan width |
| Common Technical Specs | Focus adjustment: ±10 mm Packing weight: 215 kg | Focus adjustment: ±10 mm Packing weight: 215 kg | Focus adjustment: ±10 mm Packing weight: 215 kg |
| Product Page | View HT FW 1500 | View HT FW 2000 | View HT FW 3000 |
Why Choose Hightech 4-in-1 Fiber Laser Welding Machines?
Four Functions in One System
Combine multiple metal-processing tasks in one handheld system to reduce equipment changes and simplify workshop production.
Power Options for Different Production Needs
For stainless or carbon steel up to 4 mm, choose the 1500W or 2000W configuration. Choose 3000W when welding thicknesses up to 6 mm are required. For aluminum, all three configurations support 0.5–3 mm.
Wire Feeding & Water Cooling
An integrated wire-feeding system supports filler-wire welding, while the S&A water-cooling system provides stable temperature control for the laser source and welding/cleaning head.
Global Service & Technical Support
Hightech provides worldwide shipping, installation and operation guidance, spare-parts support, a one-year warranty, and long-term technical assistance.
4-in-1 Fiber Laser Welding Materials and Applications
Hightech HT FW machines support welding and related processing tasks across common fabrication metals. Material thickness, joint design, surface condition, and the selected 1500W, 2000W, or 3000W model should be considered before production.
Stainless Steel
Suitable for fabrication, equipment parts, cabinets, sinks, panels, and general stainless-steel assemblies.
Carbon Steel
Used for frames, brackets, structural parts, machinery components, and general metal fabrication.
Aluminum
Suitable for aluminum components, frames, panels, prototypes, and other supported fabrication work.
Frequently Asked Questions
What is a 4-in-1 fiber laser welding machine?
A 4-in-1 fiber laser system combines handheld welding with cleaning-related functions and light-duty cutting in one machine, reducing the need for separate equipment.
Which 4-in-1 laser welding models does Hightech offer?
Hightech offers HT FW 1500W, 2000W, and 3000W models for different material thicknesses and production requirements.
What materials can HT FW laser welding machines weld?
The HT FW series is suitable for metals including stainless steel, carbon steel, and aluminum, with application compatibility depending on the model and material thickness.
What welding thickness can each HT FW model handle?
HT FW 1500 is listed for up to 4 mm stainless/carbon steel and 3 mm aluminum; HT FW 2000 for 6/6/5 mm; HT FW 3000 lists up to 8 mm stainless and carbon steel.
What weld types are supported?
The HT FW series supports common joints such as spot, butt, overlap, edge, and T-welds using a handheld welding gun.
Do HT FW machines include wire feeding and water cooling?
Yes. The published specifications list a double-drive wire feeder and hydrocooling system for the HT FW 1500, 2000, and 3000 models.
How do I choose between 1500W, 2000W, and 3000W?
Choose based on metal type, thickness, and production demand. Higher-power models provide greater published welding capacity for thicker materials.
What warranty and after-sales support do you provide?
Hightech lists a 1-year machine warranty plus lifetime after-sales technical support, including setup, training, troubleshooting, and maintenance guidance.
